Virgin Village

Problem Overview

Virgin Australia (formally Virgin Blue) engaged Advanced Shade Systems to design and install a new shade solution at their Brisbane office. Two areas where required to be covered providing staff with shaded outdoor areas for lunch and general congregation.

Project Challenges and Constraints

Virgin placed several project constraints on both the design team and installation team. They were as follows;

  • A general theme of flight was to be a constant throughout the design.
  • The complex arrangement of both spaces would require careful planning regarding footings and post positioning.
  • It was the desire that the completed project incorporate the colour palette of the surrounding buildings as to not stand out amongst the office grounds.

Solution

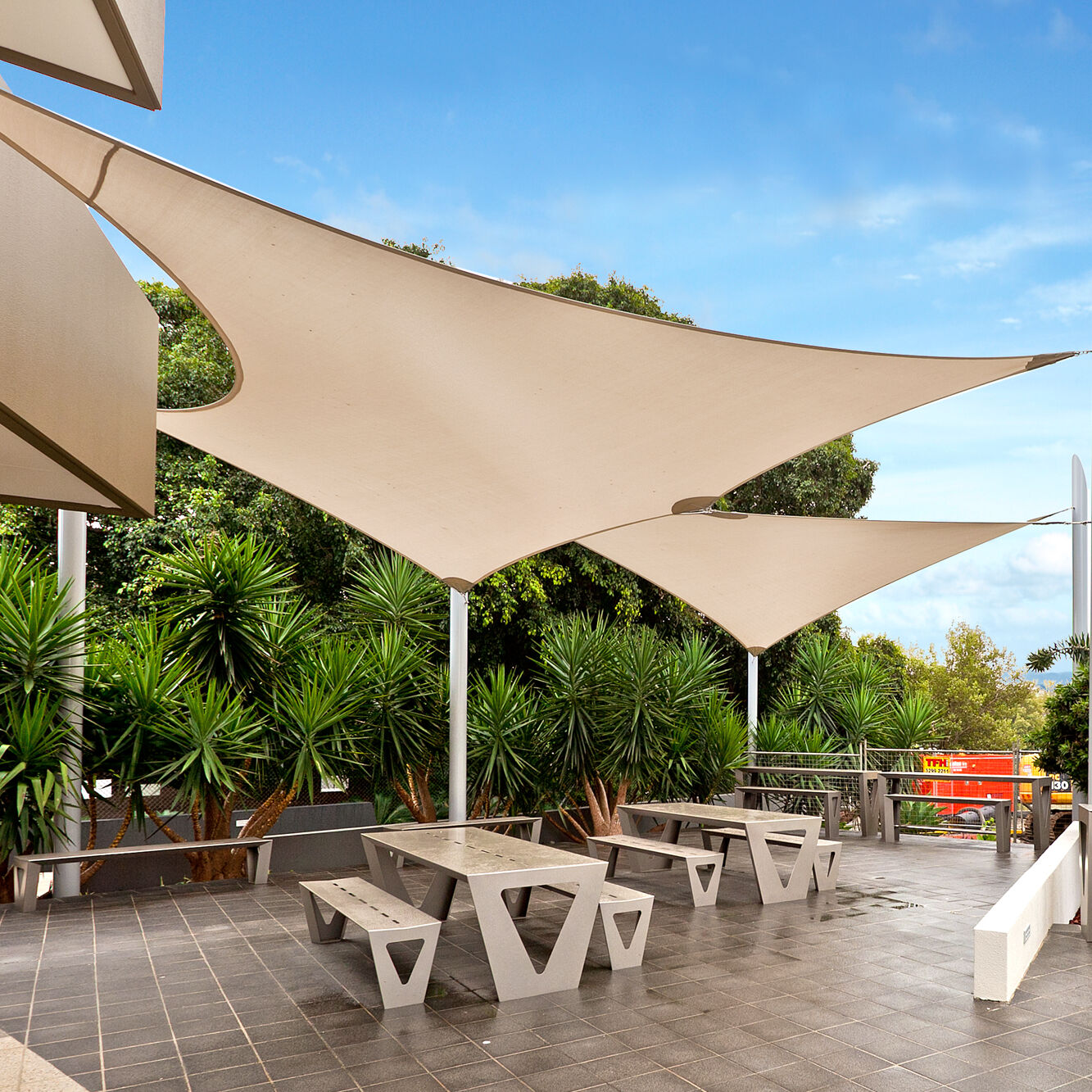

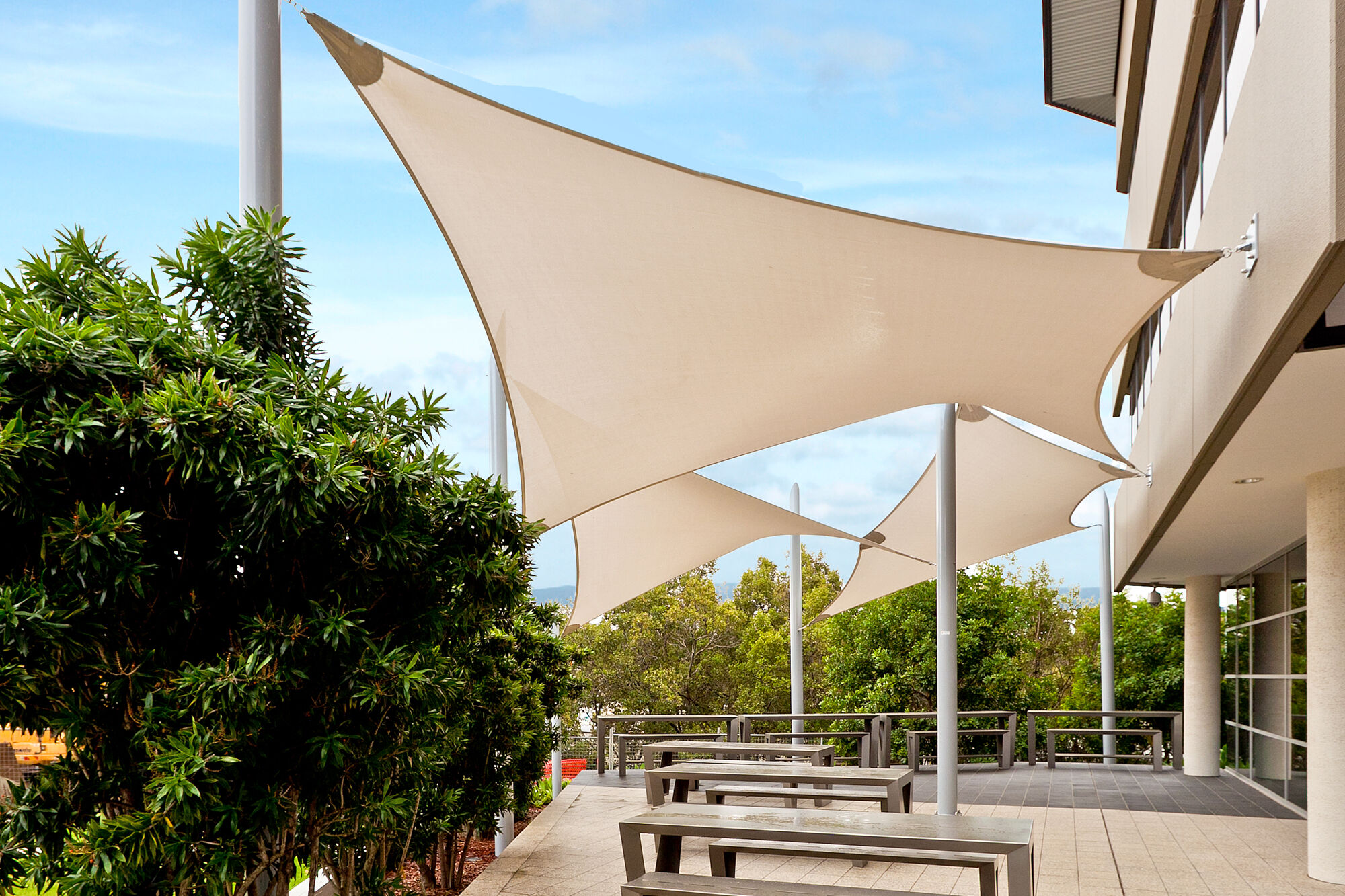

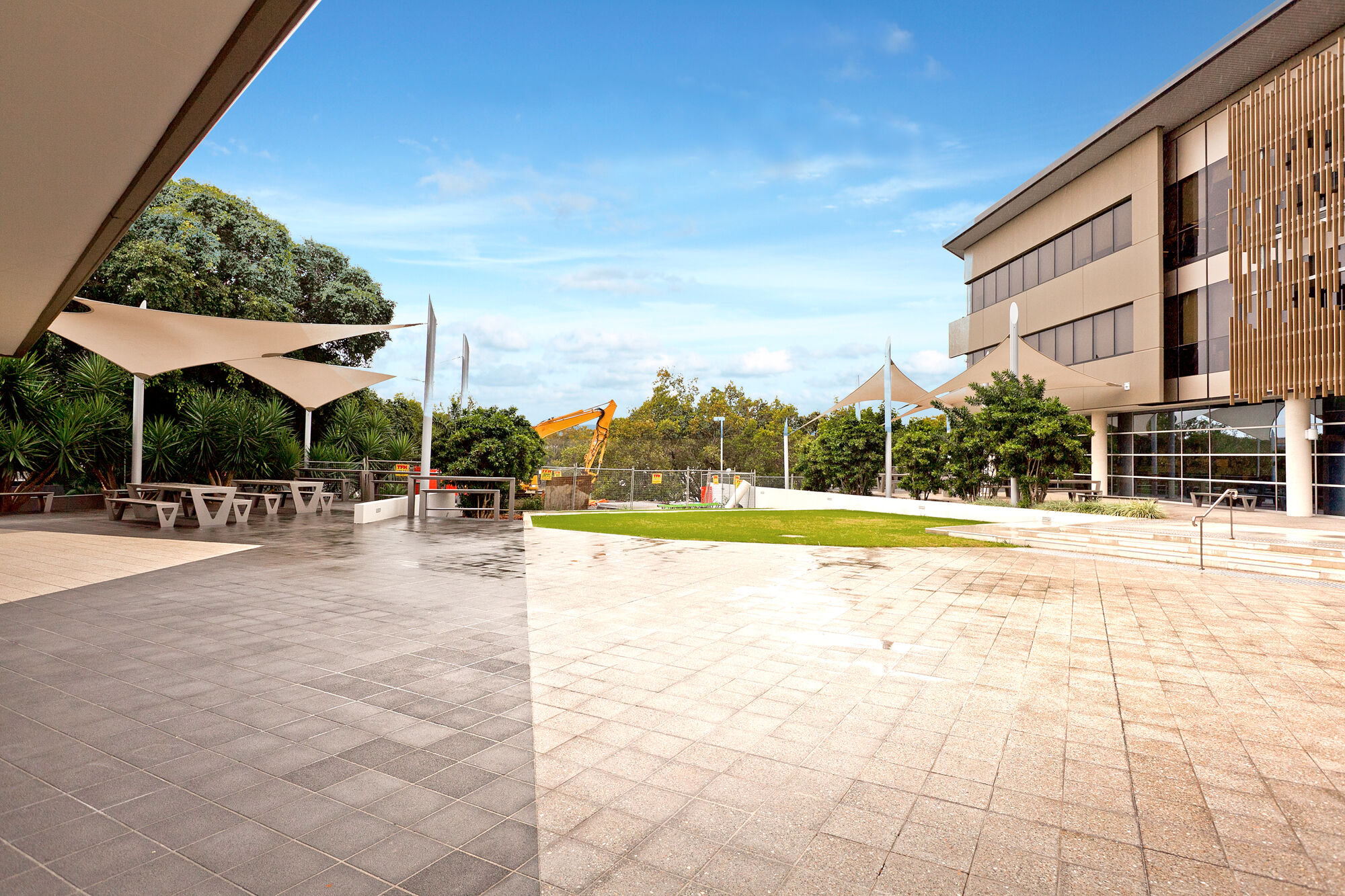

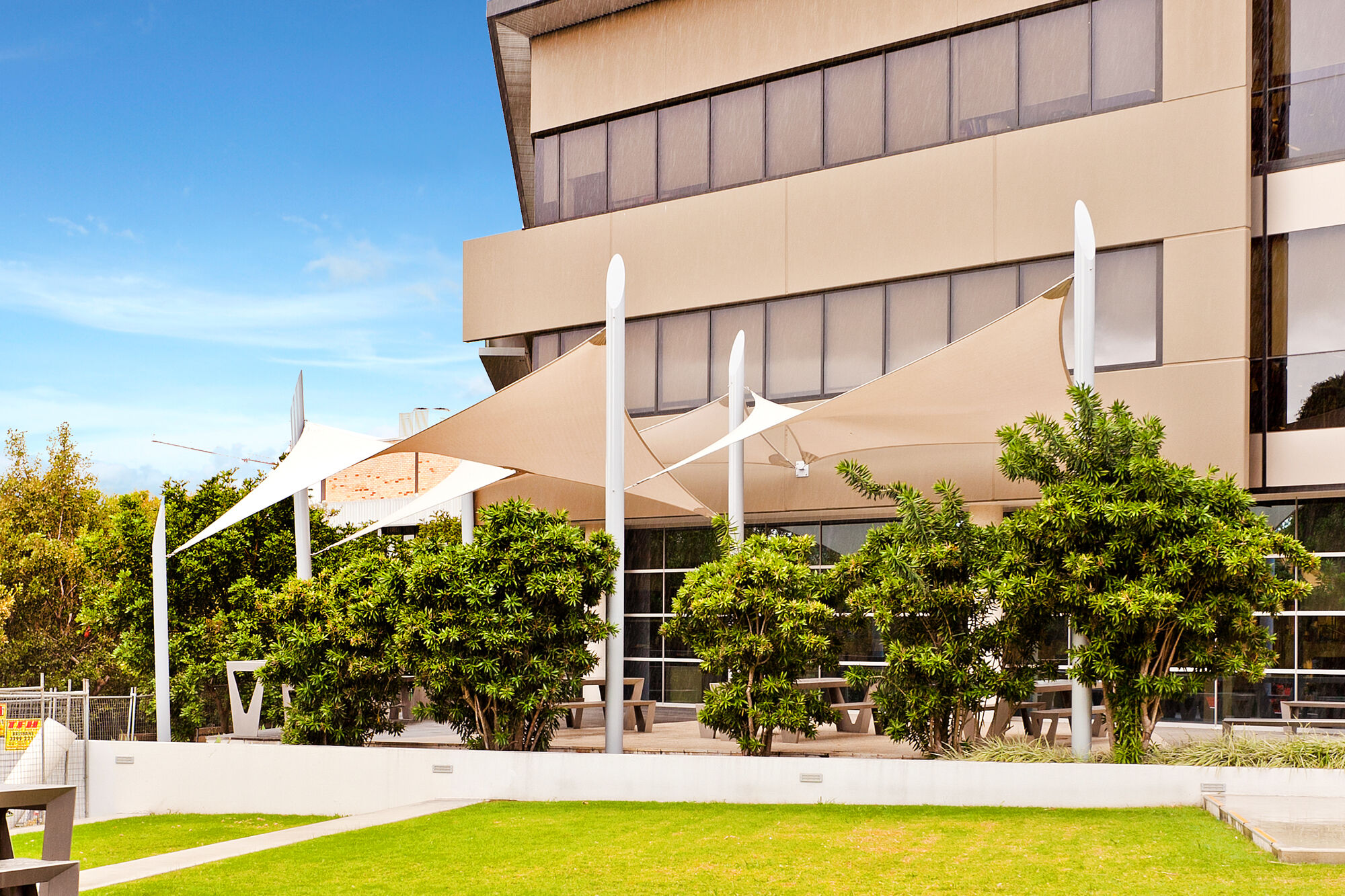

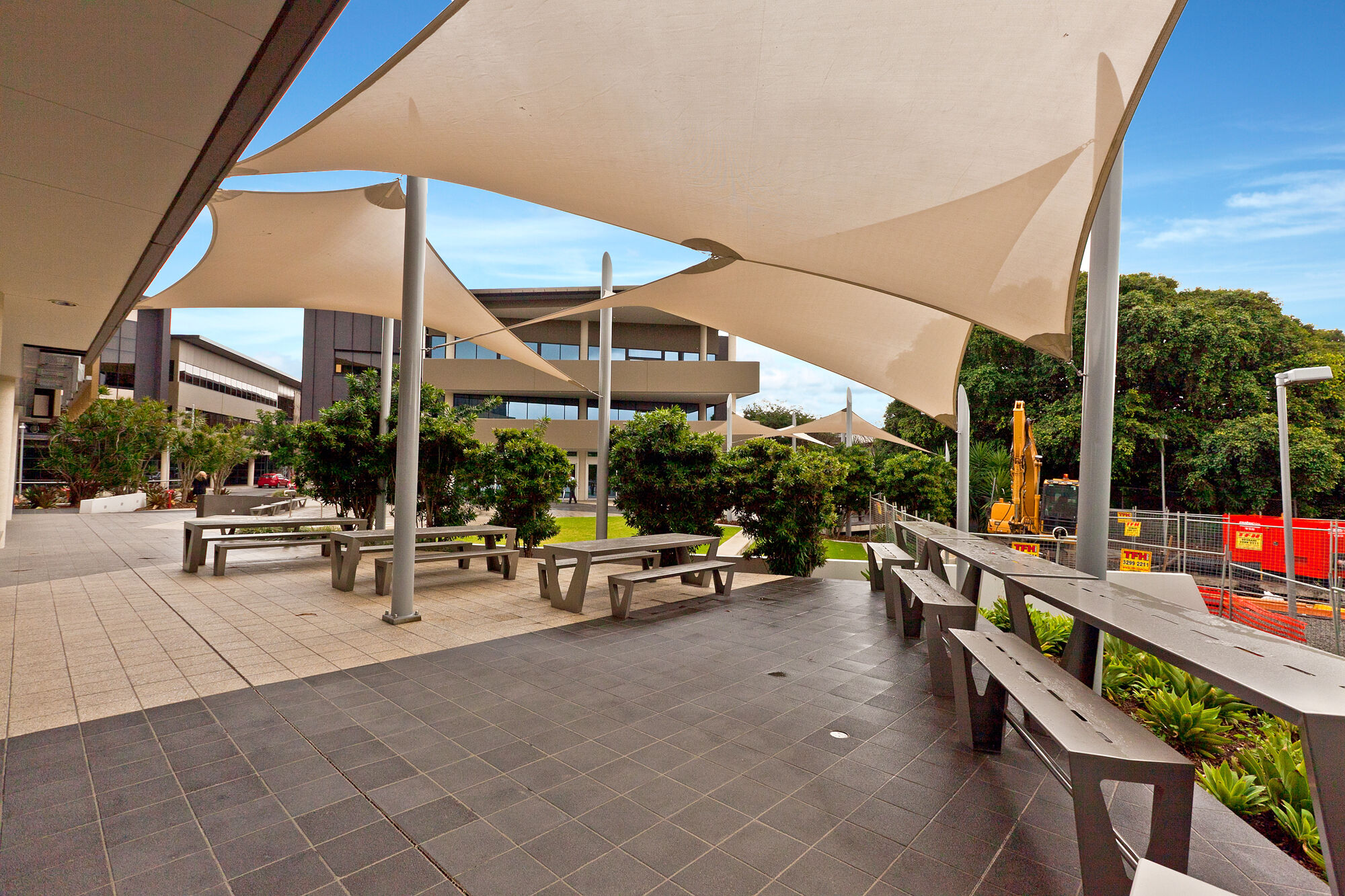

Installed on site were two sets of, linked HYPAR shade sails covering the desired locations. The first, a pair of linked sails and the second a more complex arrangement of three sails. Given the varying levels which the posts needed to be fixed to a mix of bored-pier footings, base plates to existing concrete as well as wall brackets were utilised. An upside to these varying footing types gave the opportunity to have wildly exaggerated mounting heights for the sails. We believe that this allowed the theme of flight to be adhered to as the complex curves now created by the sails replicates the wings of a bird when in the air. Finished in a sandstone like colour the final product fulfilled Virgin’s expectations and exceeded them.

ASK A QUESTION!

Looking for similar


Specifications


ENGINEERING SUPPLIED BY
Global Membrane Designs

FABRIC USED
Monotec 370 - 15 Year Warranty

STEEL USED
AS/ANZ 1163 C350 Grade

STEEL SURFACE FINISH
EZI GAL Powdercoat

RIGGING USED
316 Marine Grade Stainless Steel

TENSION CABLES USED
316 Marine Grade Stainless Steel

CORNER RINGS
Ronstan Rated 3,300kgs

FOOTINGS
Bored Piers, Base Plates and Wall Brackets
