Tallebudgera Tourist Park

Tallebudera Tourist Park

Problem Overview

A new pool development was proposed at Tallebudgera which needed a complementary shade solution. Advanced Shade Systems were contact to design and install said solution which was, all things going to plan, going to be a large tourist destination on the Gold Coast/Tweed Coast.

Project Challenges and Constraints

A number of project constraints were placed upon the team at Advanced Shade Systems. They were;

  • Being so close to the water, sand was more than likely going to cause havoc when designing and installing the footings/posts.
  • With such a large area to cover and the desire for a minimal number of posts it was inevitable that large posts would be required. Proper planning for equipment was going to be needed.
  • The children’s splash pool below the proposed sails had already been poured and sealed which meant extra care would be required when manoeuvring to avoid damage.

Solution

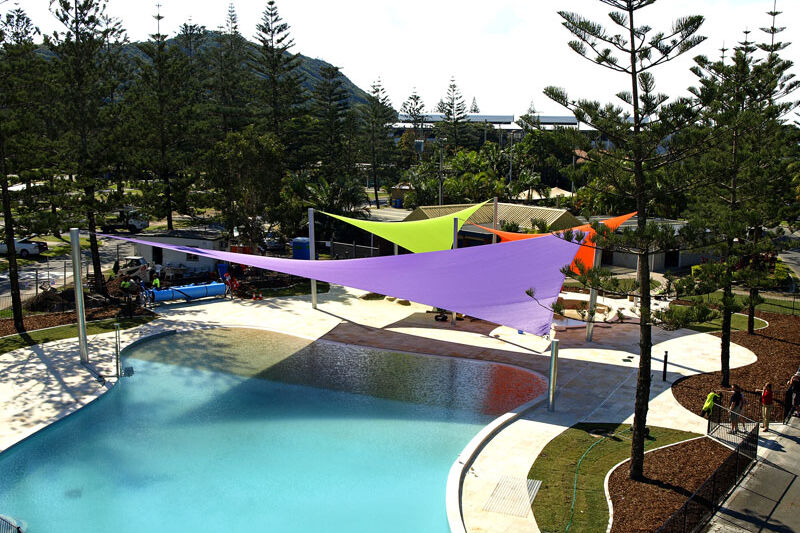

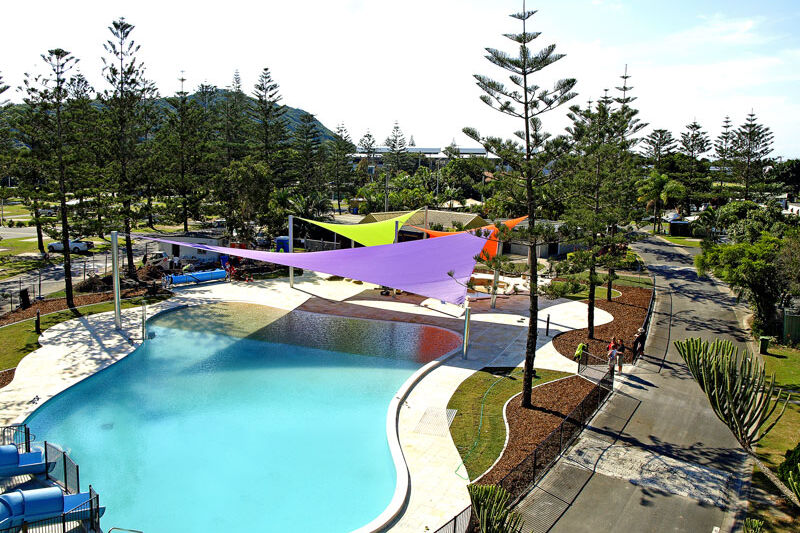

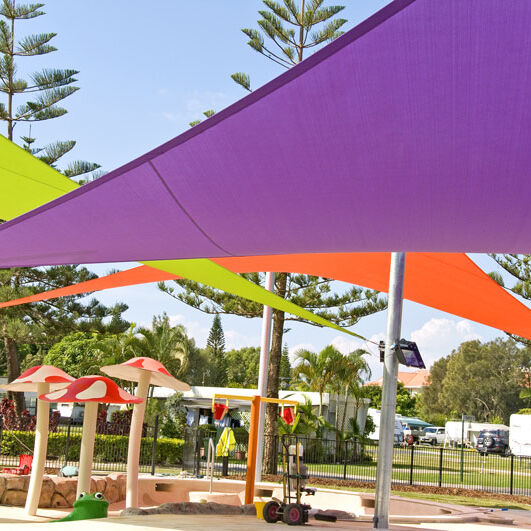

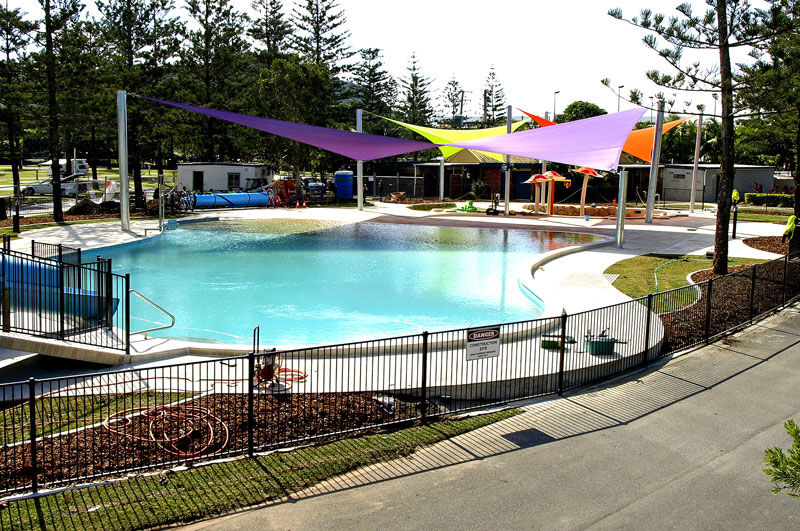

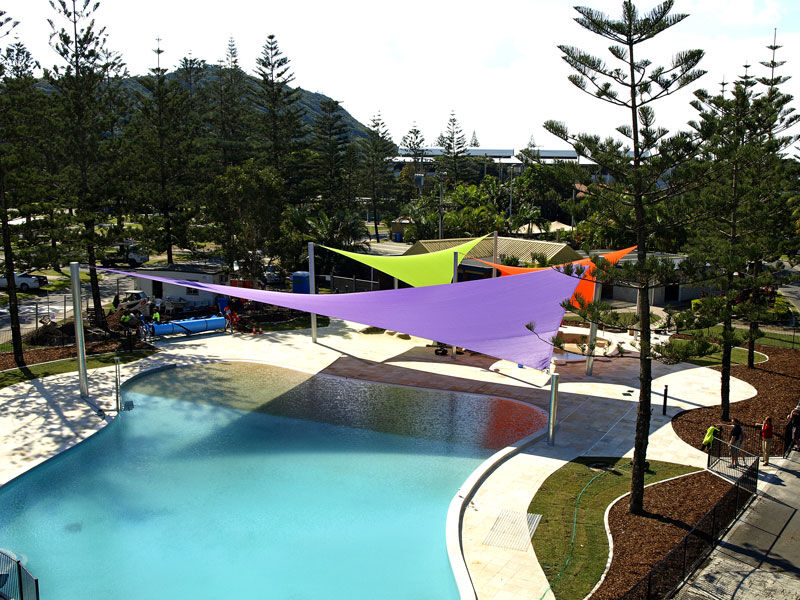

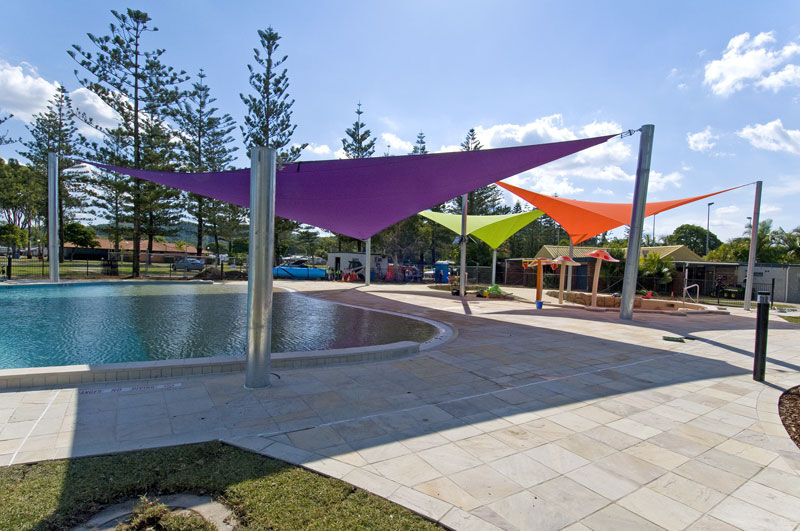

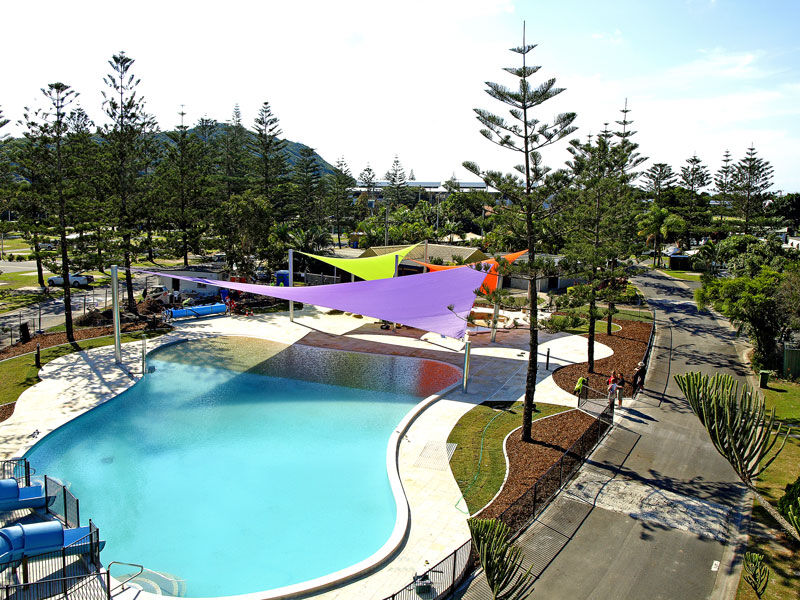

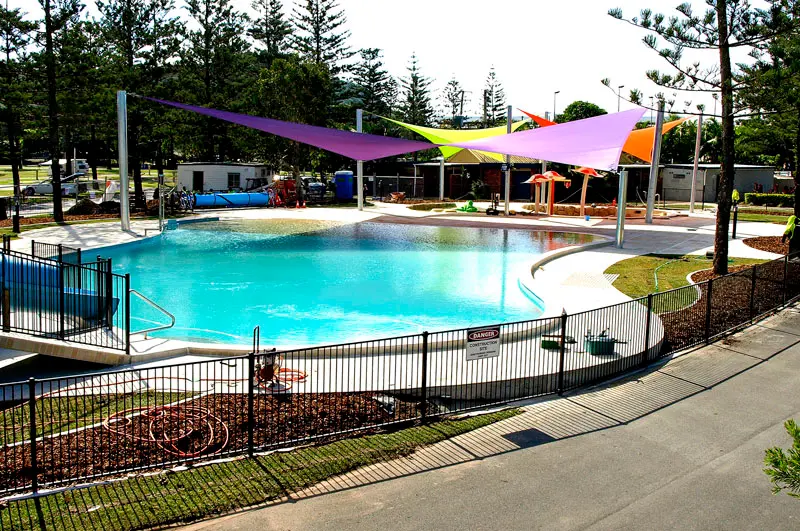

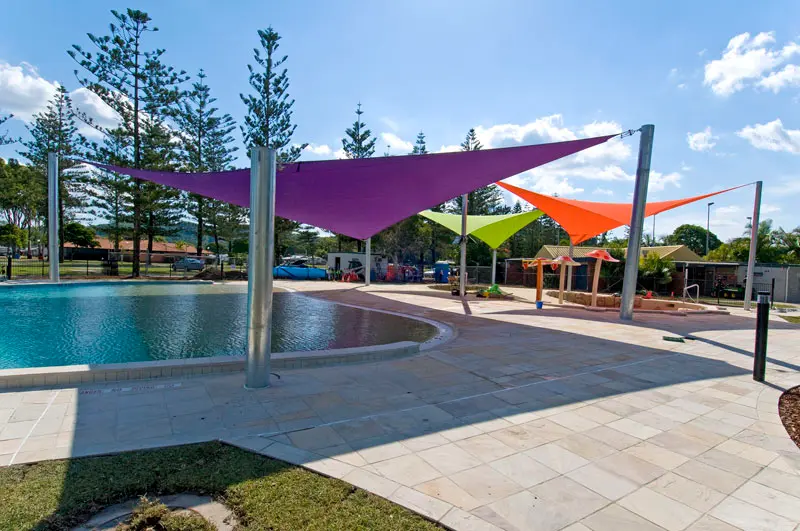

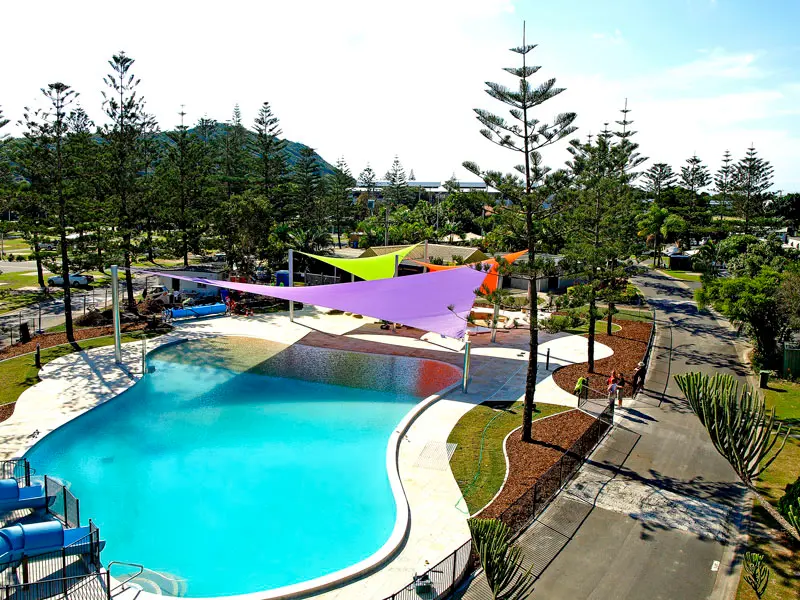

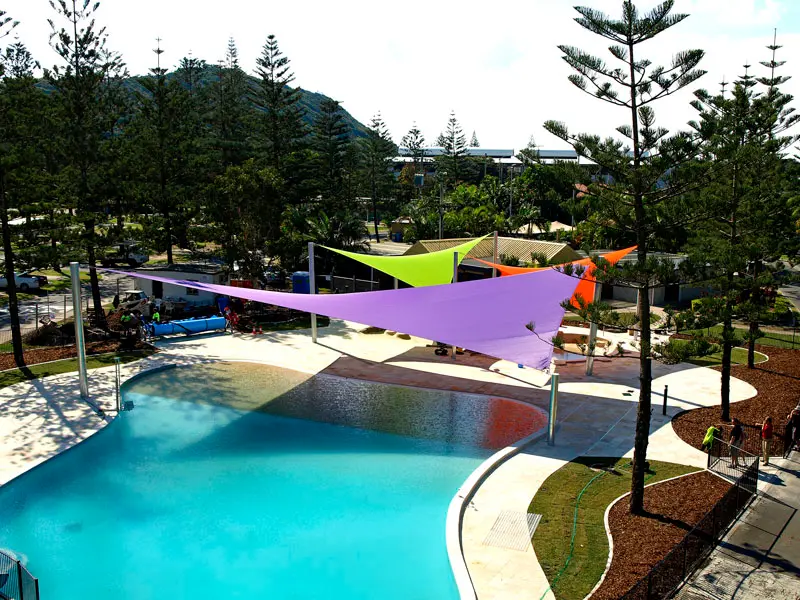

The final installation of the shade solution at Tallebudgera saw three large, linked HYPAR shade sails above an entrance to the splash pool as well as multiple play elements. With hot-dipped galvanized posts and finished with three vibrant coloured sails, the installation added to the already playful aesthetic of the pool whilst providing functional shade. The extra care required for the install resulted in no damage to the existing infrastructure and allowed for additional trades to complete their work without disruption.

ASK A QUESTION!

Looking for similar


Specifications


ENGINEERING SUPPLIED BY
OPUS Engineering

FABRIC USED
Monotec 370 - 15 Year Warranty

STEEL USED
AS/ANZ 1163 C350 Grade

STEEL SURFACE FINISH
Hot-Dipped Galvanized

RIGGING USED
316 Marine Grade Stainless Steel

TENSION CABLES USED
316 Marine Grade Stainless Steel

CORNER RINGS
Ronstan Rated 3,300kgs

FOOTINGS
Direct Embedment
