Cameron Rocks

Problem Overview

The local government funded a redevelopment of the Cameron Rocks fishing platform which included the provision of shade sails above the new composite wood and fiberglass decking. Being in an exposed area with no shade resulted in a space where fisherman, though wanting to stay a long time, found themselves needing to find refuge elsewhere or leave the area entirely.

Project Challenges and Constraints

Several challenges arose in the design and installation of this project. These included;

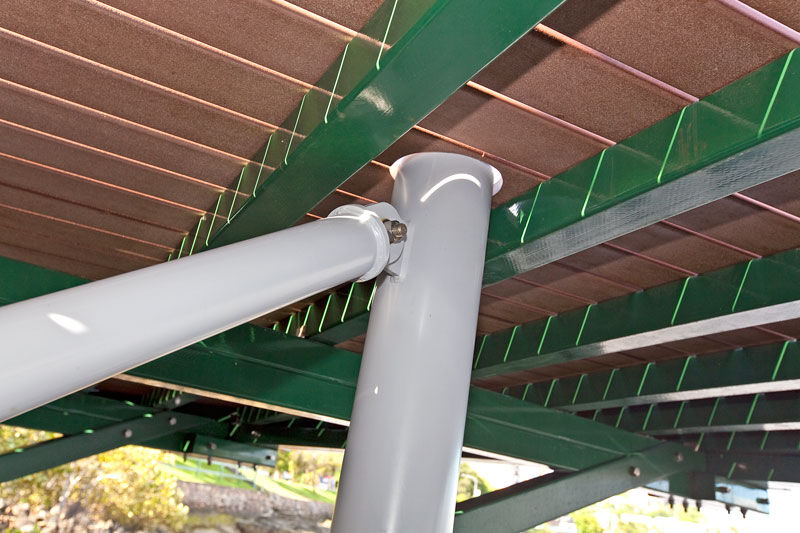

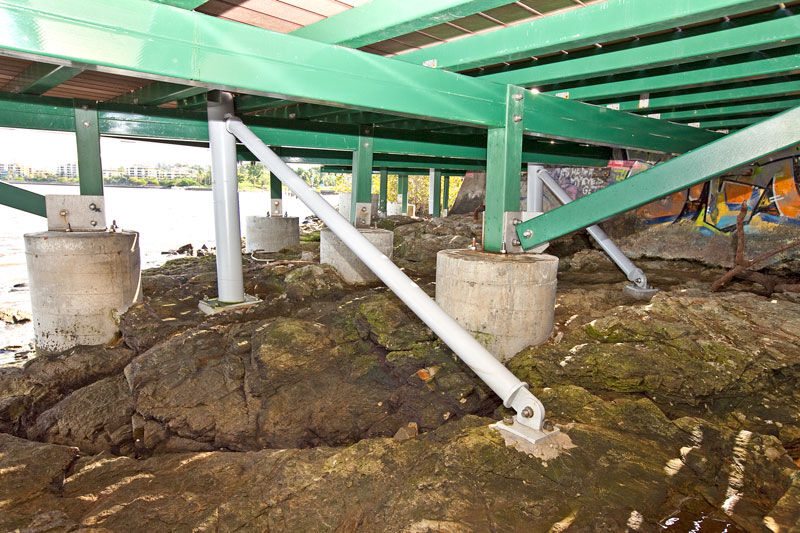

  • The posts were not able to be attached to the new deck, instead, needed to be secured to the riverbed rocks below.
  • The natural environment surrounding the post footings need to be protected and preserved throughout construction.
  • The high salinity environment meant the posts, bolts and struts all needed to be of marine grade stainless steel and powder coated to prevent corrosion

Solution

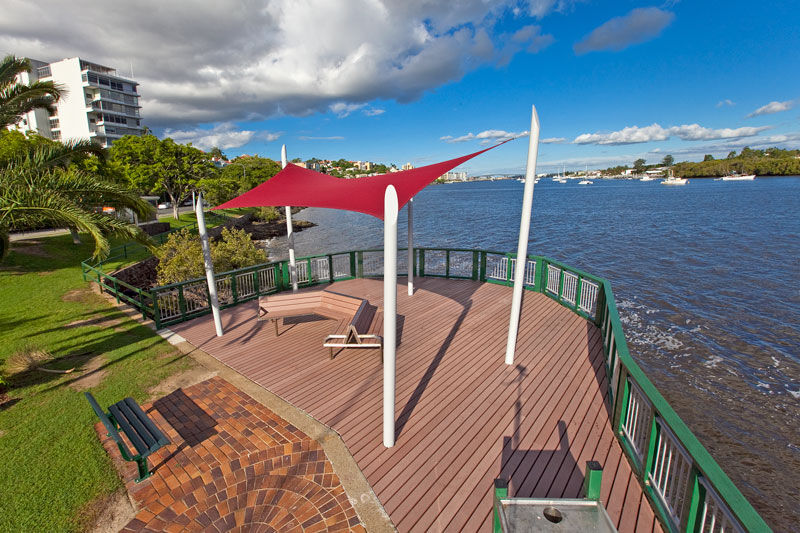

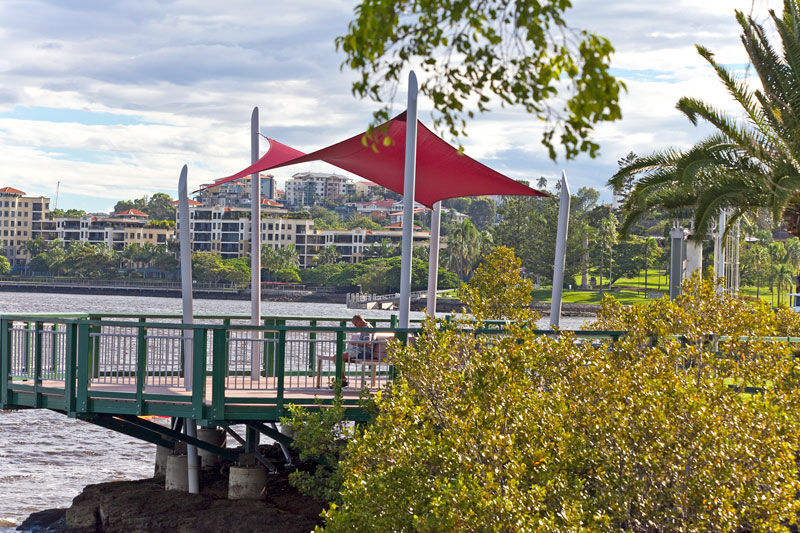

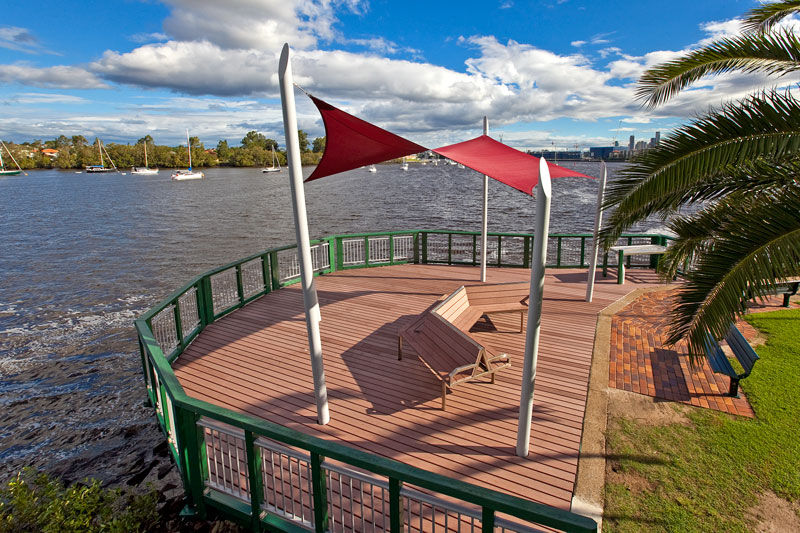

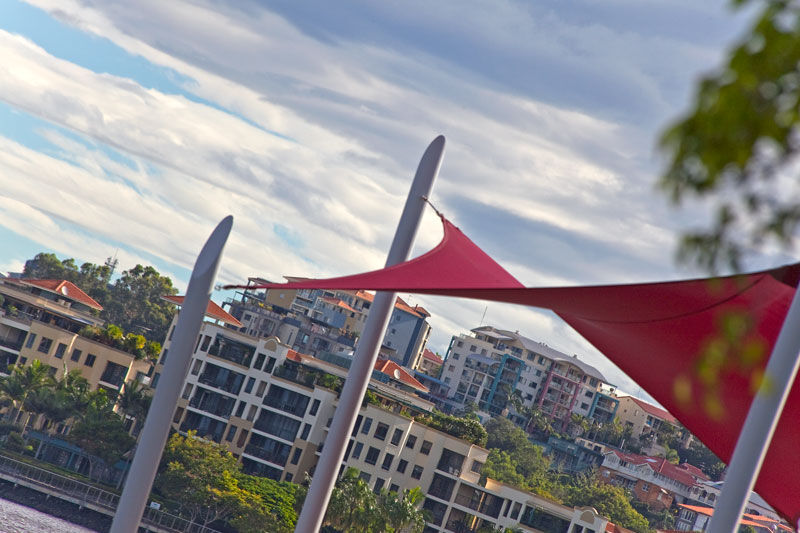

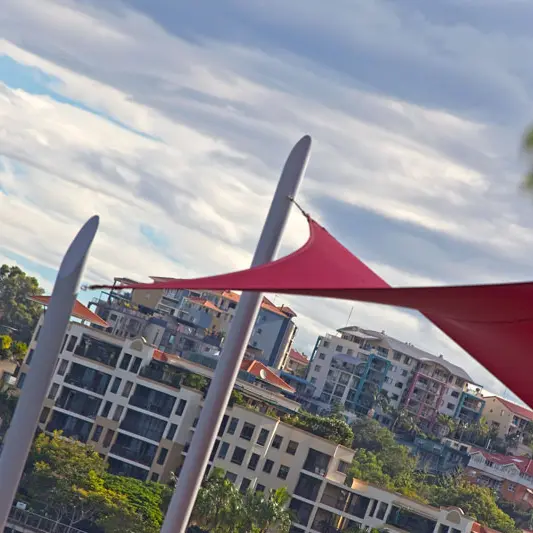

Solution The final solution designed and installed was a five posted HYPAR shade sail system. With posts extending from the riverbed below, the system was finished in a white powder coat to compliment the white paint used on the balustrade around the perimeter of the deck. A bright red sail was installed to create a feature pop of colour and provides enough shade for most of the deck as well as seating installed below. This final design was the winner of an International Fabrics Association (IFAI) Outstanding Achievement Award in 2010.

Winner of an International Fabrics Association (IFAI) Outstanding Achievement Award 2010.

ASK A QUESTION!

Looking for similar


Specifications


ENGINEERING SUPPLIED BY
OPUS Engineering

FABRIC USED
Monotec 370 - 15 Year Warranty

STEEL USED
316 Marine Grade Stainless

STEEL SURFACE FINISH
EZI GAL Powdercoat

RIGGING USED
316 Stainless Steel

TENSION CABLES USED
316 Stainless Steel

CORNER RINGS
316 Stainless Steel

FOOTINGS
Base Plates to Riverbed
